AEM X-Series EGT Gauge Kit

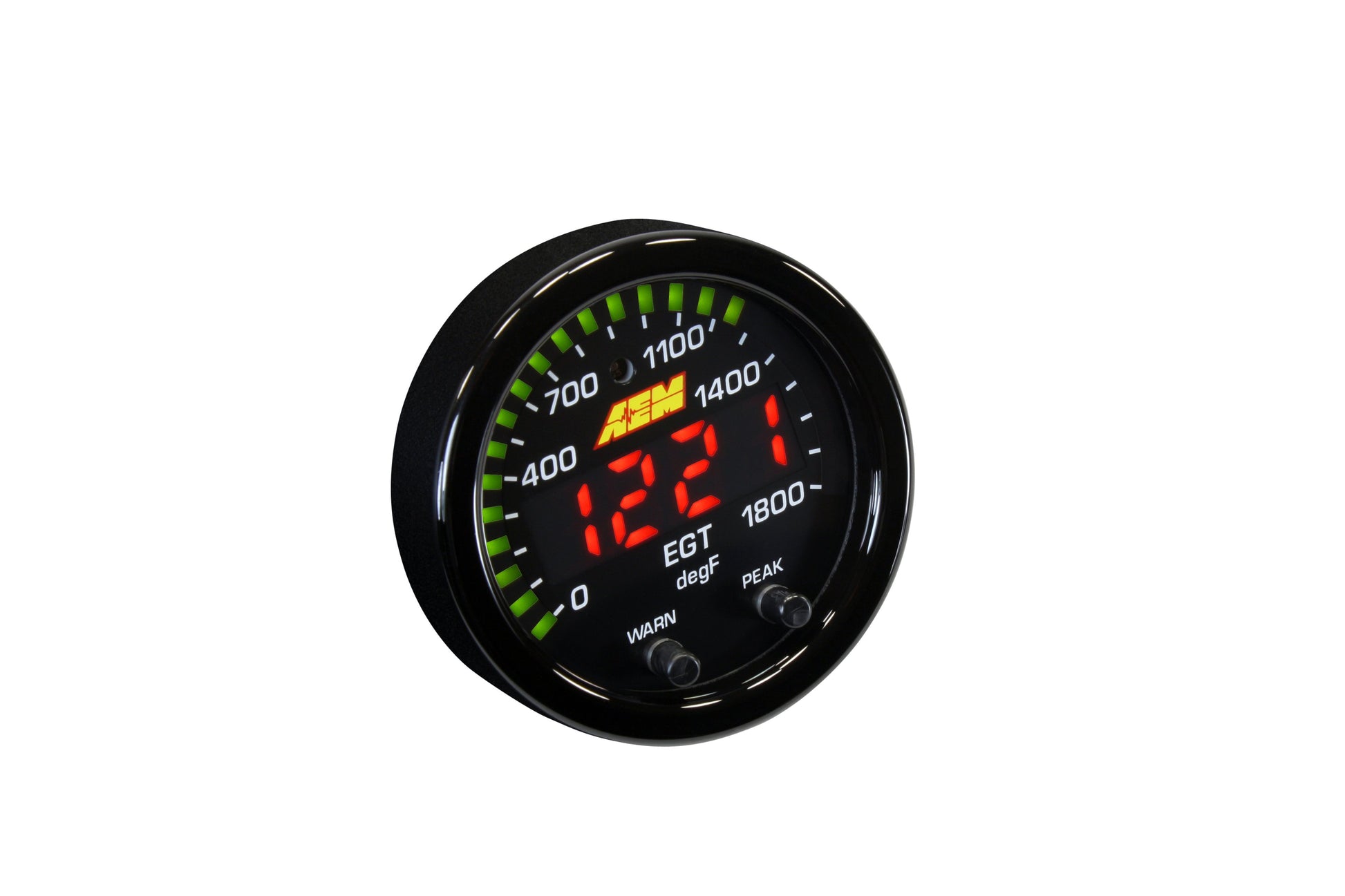

AEM's X-Series 0-1800F/0-1000C Digital Exhaust Gas Temperature (EGT) gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want a highly accurate EGT readout in their high performance vehicle.

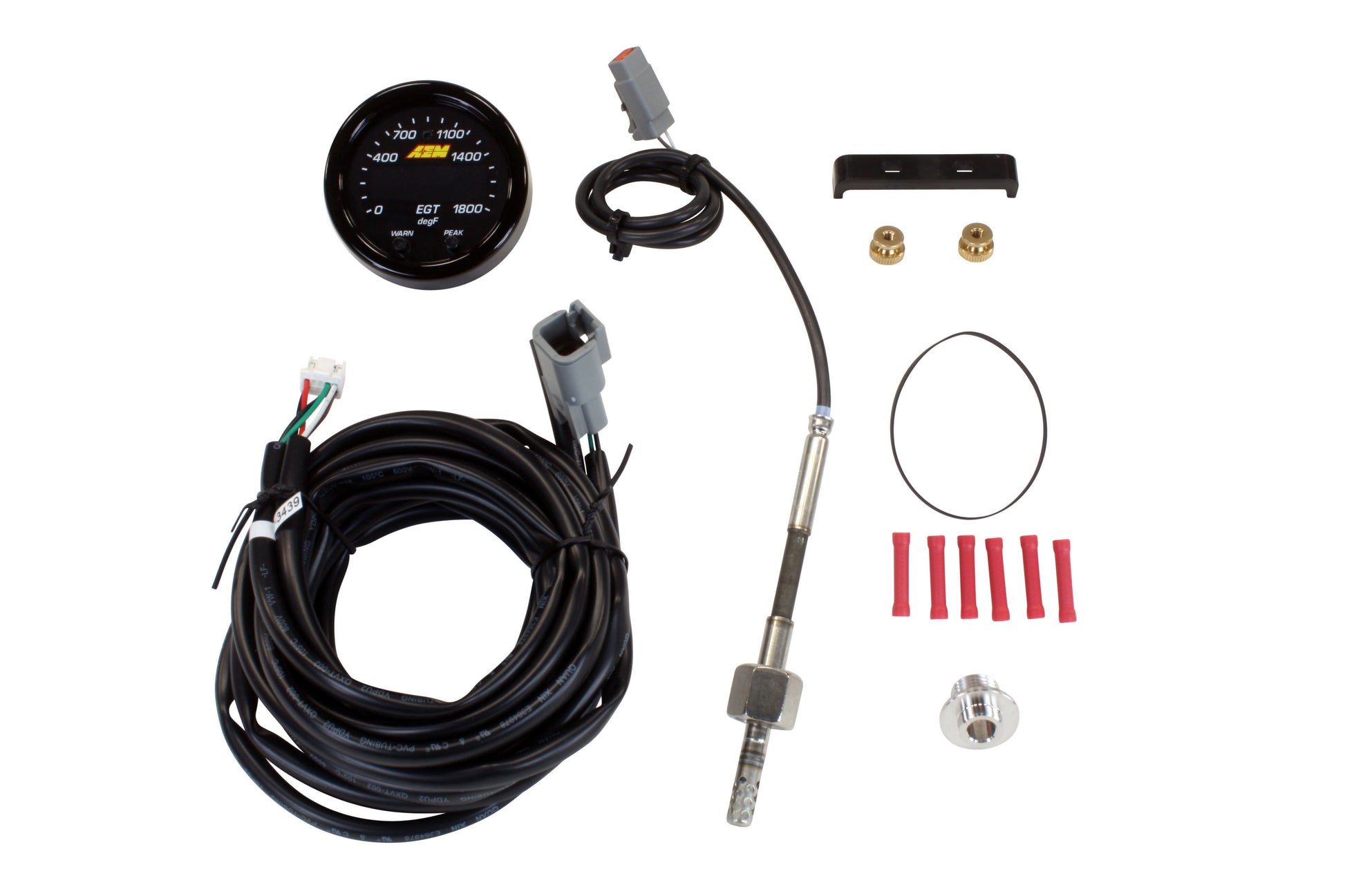

NOTE: This kit comes with a black bezel and reversible Fahrenheit/Celsius black EGT faceplate. The calibration for standard or metric display is easily performed using the buttons on the face of the gauge.

EASIER TO READ Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED "needle" lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance. EASIER TO MOUNT Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825", with a cup depth of only 0.200." This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere. SMARTER INTERFACE X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.
